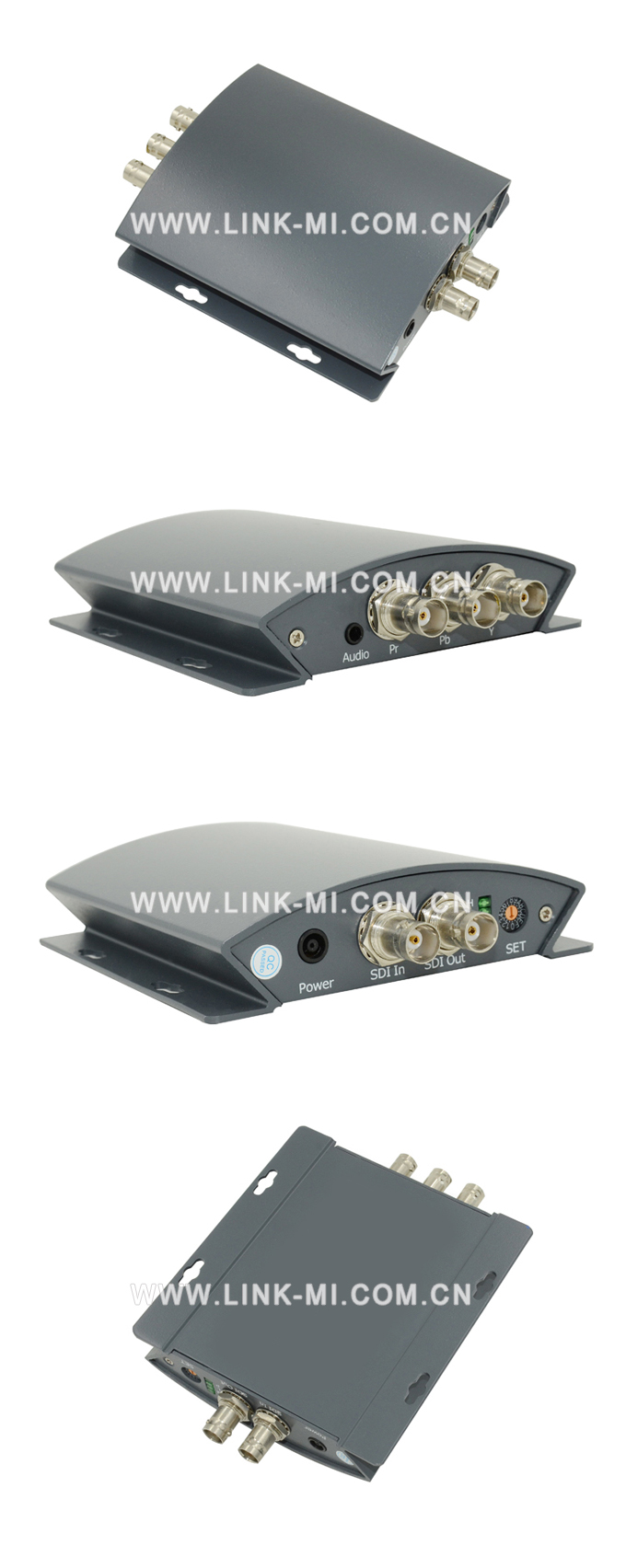

| LINK-MI LM-PSY01 Pro SDI to YPbPr Converter |
| |
Introduction:
1. Supports 3G/HD/SD SDI Signal Input2. Supports 3G/HD/SD SDI Signal Looping Output3. Supports 1080p/1080i/720p/480i/576i Video format4. Supports 1080PSF/ 720P 30/25/24Hz 5. SD/HD YPbPr output6. Support up-conversion and down-conversion function7. Select 3 kinds of mode freely under down-conversion8. Adaptively SDI input signal9. De-embedded Audio from SDI input signal10. Supports Analog stereo audio output11. Can be costumed |
|
|
| |
|
|
|
Specification
|

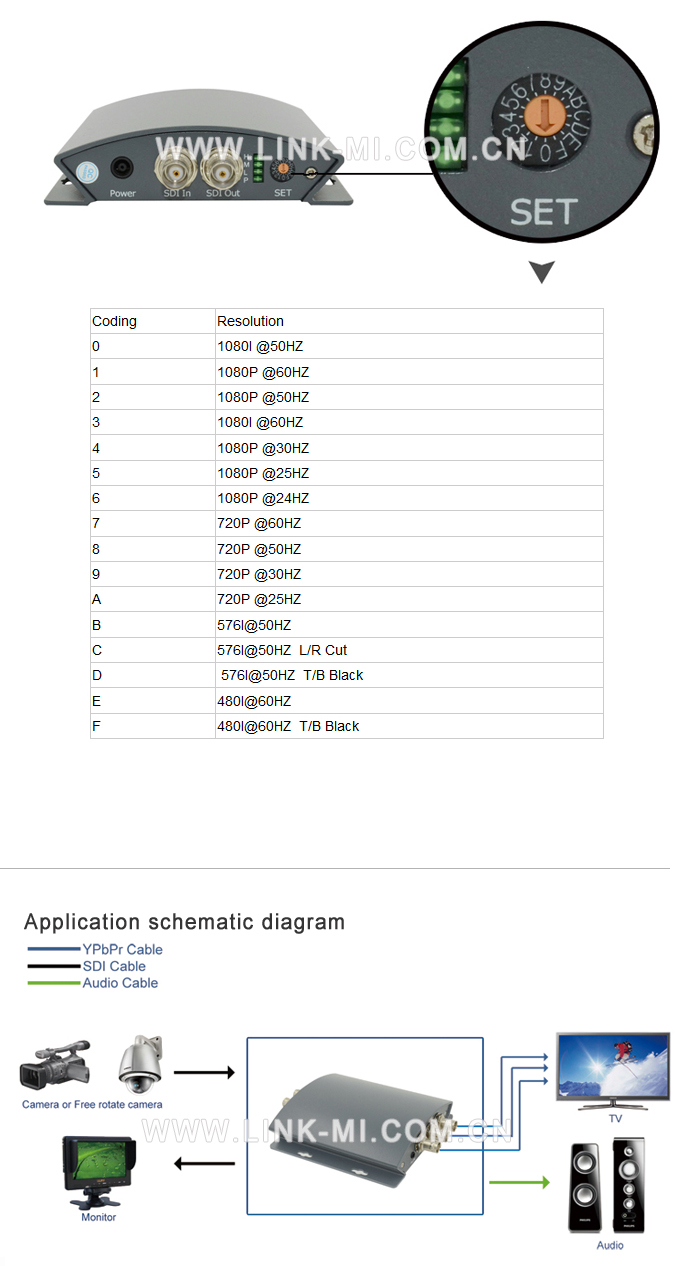

Name |
SDI to YPbPr + Audio Converter |
|
Model No. |
LM-PSY01 |
|

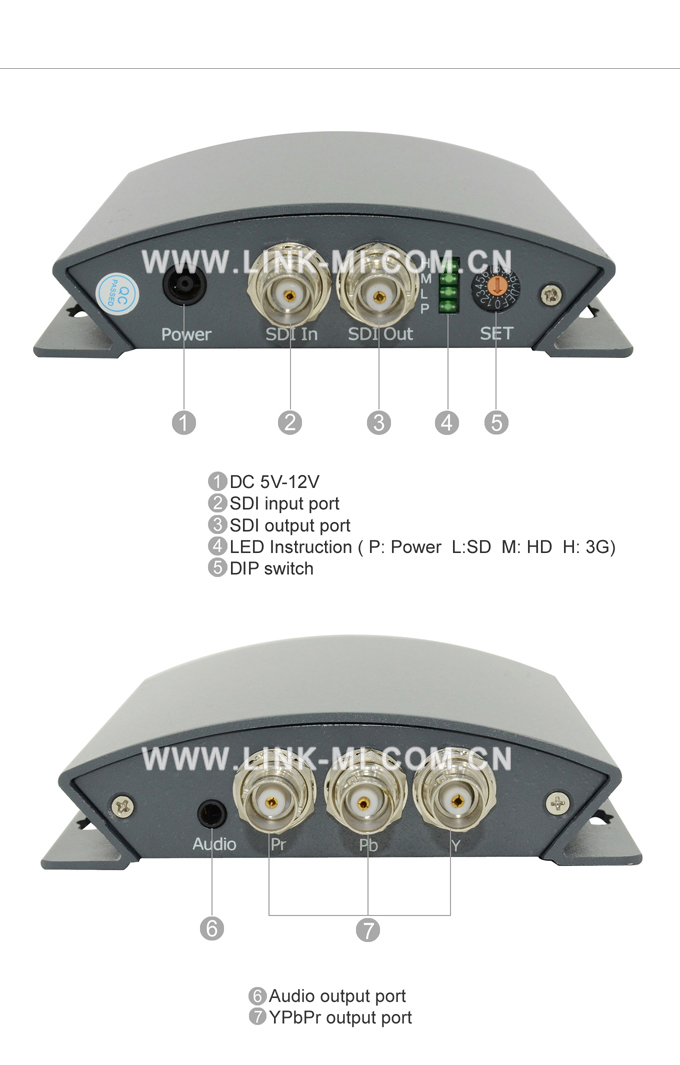

SDI Input / Output |
Signal |
3G/HD/SD SDI |
|
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps-2.97Gbps |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Output |
Output Signal |
Analog Stereo Audio |
|
Impedance |
16Ω |
|
Connector |
Earphones |
|
YPbPr Output |
Output Signal |
Analog YPbPr Signal |
|
Connector |
BNC ( IEC169-8 Standard ) |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
|
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃(non-condensing) |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
Packing Contents
1. Main Unit. 1pcs Pro SDI to YPbPr + Audio Converter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual
|
 |
|
|
|
|
